Frames / Rolling Chassis

200 Wide Drop-Seat
LSD Softail Prostreet Frame

Specical Features include:

40 Degree Rake.
5" Stretch on Back Bone.
0" Stetch on Single Downtube.
Single Heavy Duty Downtube.
CNC Milled motor mount.
TIG welded at major points.
MIG welded on our new precision frame fixtures for accurate location & fitment.
Accepts any Harley-Davidson Evolution motor 88"-135".
Motor mounts.
Rear axle and plates included.

accepts any Harley-Davidson Evo Big Twin engine except Twin Cam 88
included rear axle, pivot bolts and hardware.

Frame includes a Manufacturer s Statement of Origin (MSO) for registration
(will be shipped separately for safety).
$3499 Retail.

Retail:$3499
plus tax.

Demon's Cycle Pro-Street built on a similar frame

Demon's Cycle Pro-Street built on a similar frame

Made in USA!

FAT TIRE 250mm SOFTAIL STYLE FRAME

SpecialFeatures include:

38 Degree Rake.
4 " Stretch on back bone
2 " Down tube stretch

Frame comes with rear axle, swingarm, pivot arm and MSO.

Accepts Harley-Davidson Evolution motor 1986-99 and any Evo-style engine up to 135": RevTech, S+S, Ultima, Merch, Patrick.

Notice! For safety reasons we ship MSO separately from the frame.
The purchaser of the frame should email us with the VIN # found on the frame
and his mailing address. We will ship the MSO immediately upon this conformation.

Custom motorcycle built by Demon's Cycle on similar frame

Internal Rear Axle Adjusters

Black internal rear axle adjusters for Harley-Davison Softail, rigid, custom chopper frames and any custom application.
Adjusters are 2" long

Made in the USA

Rigid Bobber 250 Frame
for 4-5 Speed Big Twins
Awesome 250 Bobber!

High-quality frame accommodates any Big Twin engine except Twin Cam 88
including strokers and Evolution motors, with 4 and 5 speed transmissions and
chain final drives. Necks have a stock (30) rake and no stretch in the front
down tubes, and comes with an axle.

OE stretch and rake.

Fits 250 tire.

Frame includes a Manufacturer s Statement of Origin (MSO) for registration

Notice! For safety reasons we ship MSO separately from the frame.
The purchaser of the frame should email us with the VIN # found on the frame
and his mailing address. We will ship the MSO immediately upon this conformation.

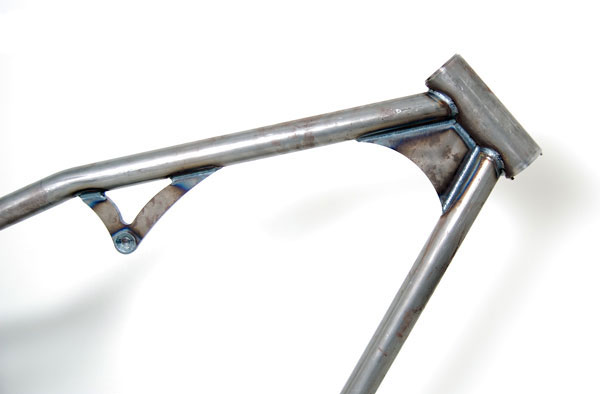

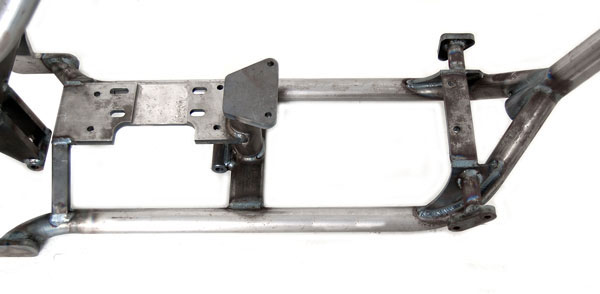

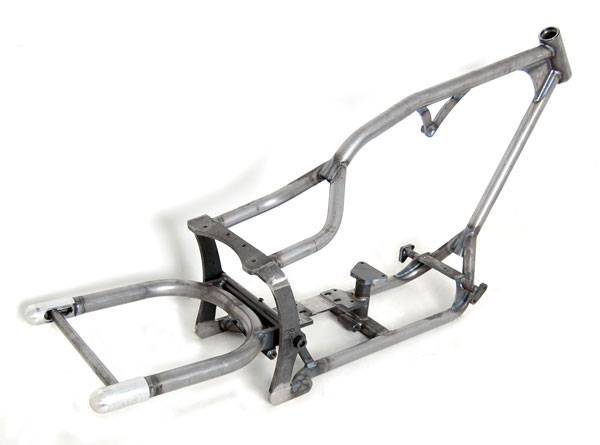

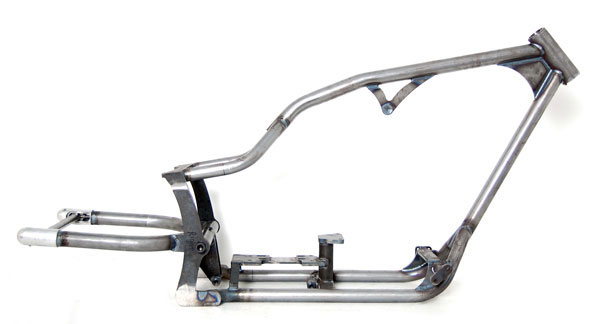

250 Wide Drop-Seat
LSD Softail Prostreet Frame

Specical Features include:

40 Degree Rake.
5" Stretch on Back Bone.
-2" Stetch on Single Downtube.
Single Heavy Duty Curved Downtube.
1-3/8" tube with 156 wall.
CNC Milled motor mount.
TIG welded at major points.
MIG welded on our new precision frame fixtures for accurate location & fitment.
Accepts any Harley-Davidson Evolution motor 88"-135".
Motor mounts.
Rear axle and covers included.

accepts any Harley-Davidson Evo Big Twin engine except Twin Cam 88
included rear axle, pivot bolts and hardware.

Frame includes a Manufacturer s Statement of Origin (MSO) for registration
(will be shipped separately for safety).
$3499 Retail.

Retail:$3499
plus tax.

Demon's Cycle Pro-Street built on a similar frame

Made in USA!

Custom Pro-Street
RSD Drop-Seat Rolling Chassis
300 Radical Chopper Kit

WITH
'60 Spokes' Chrome Chopper Rims with Billet Hubs

List of parts included in this kit:

'300' Super-Wide Prostreet Frame
Accepts 'Super-Wide' 300-series tire
Full TIG welding
Single downtube
1"- diameter rear axle
40 degree rake
5" Out Stretch
0" Up Stretch
Built-in transmission plate
Drop-seat area is only 14" low!
Right Side Drive

Comes with rear axle and billet aluminum axle covers/swingarm tips.
Built for Harley-Davidson Evolution motor or custom Evo-style motors.
(MSO shipped separately for safety)
Made in USA
Retail: $3500

'60 Spokes'
Chrome Rim with Chrome Billet Hub 18" x 10.3" Rear Wheel
Will fit 300 Tire
$1200 Retail

'60 Spokes'
Chrome Rim with Chrome Billet Hub21" x 2.15" Front Wheel
$900 Retail

Stock length, 3 rake Chrome Billet Front End with Billet Aluminum Chromed Triple Trees
$1999 Retail

Total Retail:$7599.00 plus tax.

You are getting all of the parts listed above.

Twin Cam Engine Adapter Plate for Big Twin Evolution Frames

CNC machined from 7075 billet aluminum
Retrofits Harley-Davidson Twin Cam 88 'A' (except TC88B) engines into Big Twin Evolution style solid mount frames.
Includes Hardware
Includes Instructions
Fits OEM engine crankcases.

Made in the U.S.A.

Rigid Wide Drive Frame

This is a nice clean old school chopper rigid frame that handles perfect and is not too too big.
Brand new first quality Rigid Frame.
This USA made frame has a 34 degrees rake,
4"  downtube stretch,
1"  backbone stretch and accepts up to 210mm tire with a belt. This frame make a great bike.
Auction is for Frame with MSO
Accepts all Harley-Davidson 1985 - 99 EVO Engines + Transmissions
80" to 135"

Dimensions:

Rake of 34 degrees.
4" Stretch downtubes.
Tank mounts.
1026 DOM (Drawn Over Mandrel) steel tubing.
Legs are 1.25" O.D. with .125" thick wall.
Backbone is 1.500" O.D. with .187" thick wall.
Seat post is 1.500" O.D. with .187" thick wall.

Product ID = 3322

200 Wide Drop-Seat
LSD ProStreet Frame

accepts any Harley-Davidson Evo Big Twin engine except Twin Cam 88
included rear axle, oil tank, billet oil cap.

Frame includes a Manufacturer s Statement of Origin (MSO) for registration
(will be shipped separately for safety).
$3499 Retail.

Retail:$3499
plus tax.

Made in USA!

250 Wide Drop-Seat
LSD ProStreet Frame

accepts any Harley-Davidson Evo Big Twin engine except Twin Cam 88
included rear axle, oil tank, billet oil cap.

Frame includes a Manufacturer s Statement of Origin (MSO) for registration
(will be shipped separately for safety).
$3499 Retail.

Retail:$3499
plus tax.

Made in USA!

300 Wide Drop-Seat
RSD Softail Prostreet Frame

Specical Features include:

40 Degree Rake.
5" Stretch on Back Bone.
0" Stetch on Single Downtube.
Single Heavy Duty Downtube.
CNC Milled motor mount.
TIG welded at major points.
MIG welded on our new precision frame fixtures for accurate location & fitment.
Accepts any Harley-Davidson Evolution motor 88"-135".
Motor mounts.
Rear axle and plates included.

accepts any Harley-Davidson Evo Big Twin engine except Twin Cam 88
included rear axle, pivot bolts and hardware.

Frame includes a Manufacturer s Statement of Origin (MSO) for registration
(will be shipped separately for safety).
$3499 Retail.

Retail:$3499
plus tax.

Made in USA!
