Frames

Roller Rocker Arms Set for Evolution, Twin Cam and Ultima Engines

Made from 4140 steel forgings, the new rocker arms are the strongest on the market today. These new arms incorporate a 1.675 ratio for increased lift and will match Ultima heads perfectly. A best value product!
Uses OE rocker shafts.

Set of 4

Fit all Harley-Davidson Evolution model engines 1994 and Later, Big Twin and XL Motors, 1999 -Later Twin Cam Engines, Ultima Engines.

FAT TIRE 250mm SOFTAIL STYLE FRAME

SpecialFeatures include:

38 Degree Rake.
4 " Stretch on back bone
2 " Down tube stretch

Frame comes with rear axle, swingarm, pivot arm and MSO.

Accepts Harley-Davidson Evolution motor 1986-99 and any Evo-style engine up to 135": RevTech, S+S, Ultima, Merch, Patrick.

Notice! For safety reasons we ship MSO separately from the frame.
The purchaser of the frame should email us with the VIN # found on the frame
and his mailing address. We will ship the MSO immediately upon this conformation.

Custom motorcycle built by Demon's Cycle on similar frame

250 Wide Drop-Seat
LSD ProStreet Frame

accepts any Harley-Davidson Evo Big Twin engine except Twin Cam 88
included rear axle, oil tank, billet oil cap.

Frame includes a Manufacturer s Statement of Origin (MSO) for registration
(will be shipped separately for safety).
$3499 Retail.

Retail:$3499
plus tax.

Made in USA!

250 Custom Pro-Street Frame

Frame is made to accept Harley-Davidson Evolution motor or any custom Evo-style motors.

Accepts Wide 250-series tire
Full TIG welding
1"- diameter rear axle
38° degree rake
6" Out Stretch
2" Up Stretch
1-3/4" and 1-3/8" tubes
Left Side Drive
Adjustable transmission plate.
Bilet aluminum axle covers.
Comes with rear axle.

Made in USA

2 BILLET CHROME FRAME FORK CUPS

These 2 billet chrome frame fork cups will fit most
Big Twins and Custom frames
from 1960 to Present.

for 1" stem

These nice triple plated fork cups retail for $58.99 US
and we sell for a fraction of the cost.
A "must have" for any Custom Bike builder.

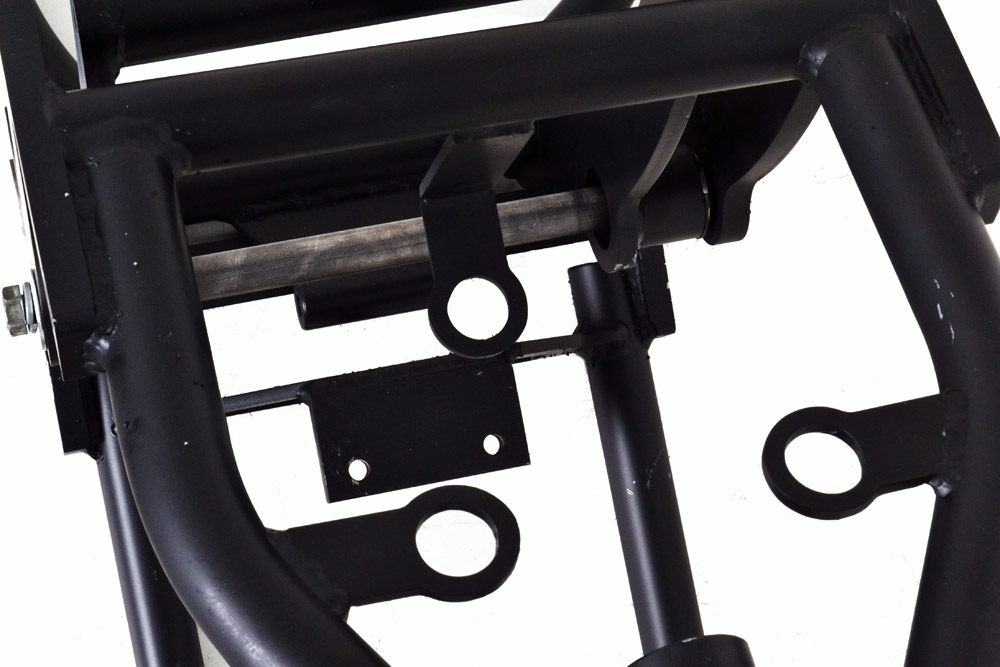

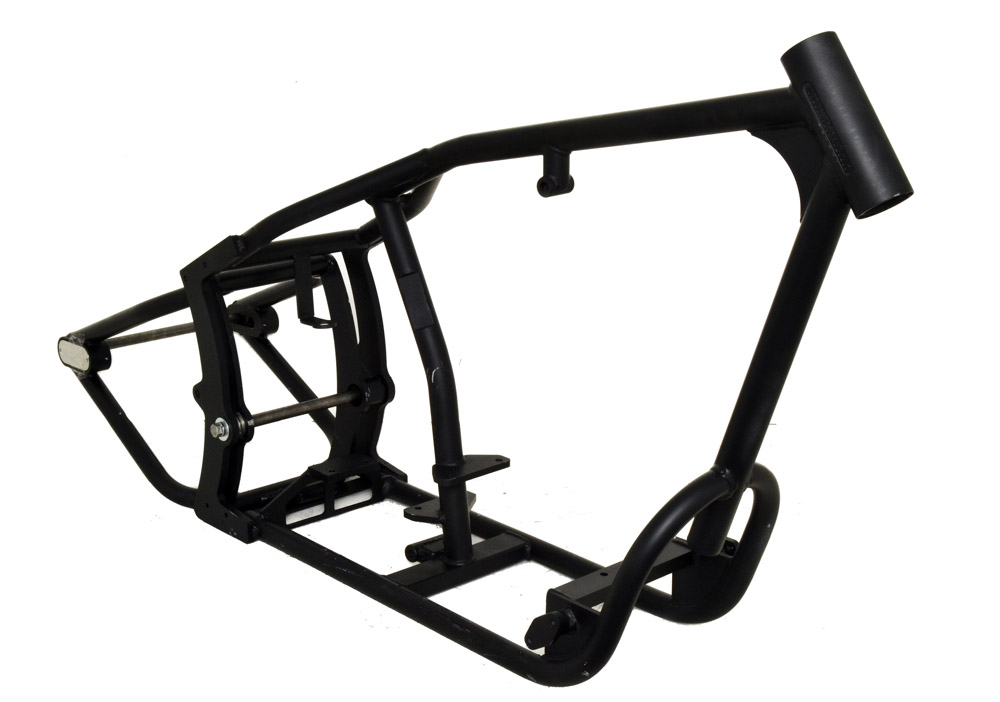

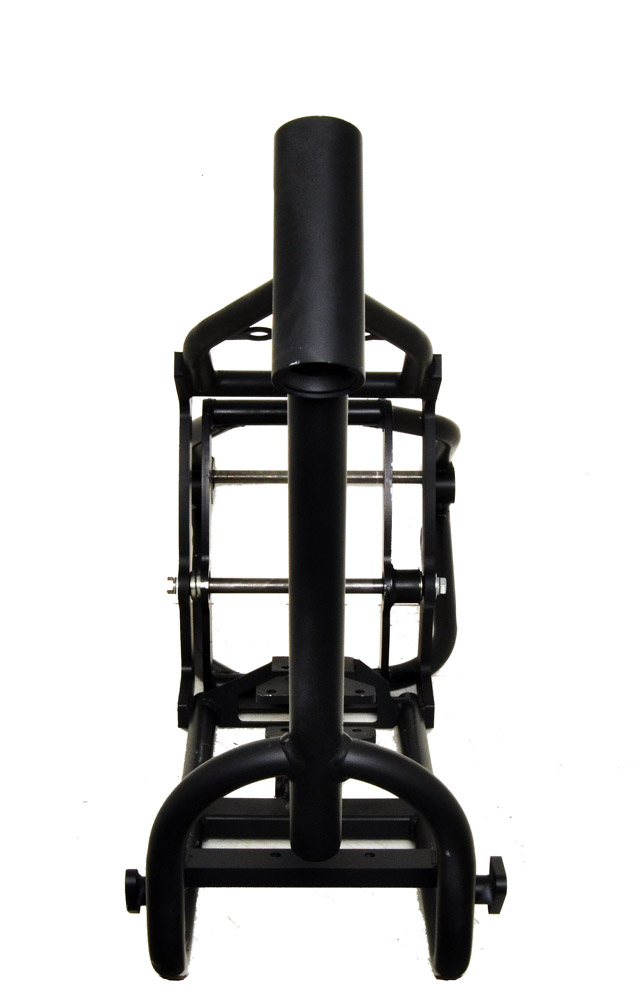

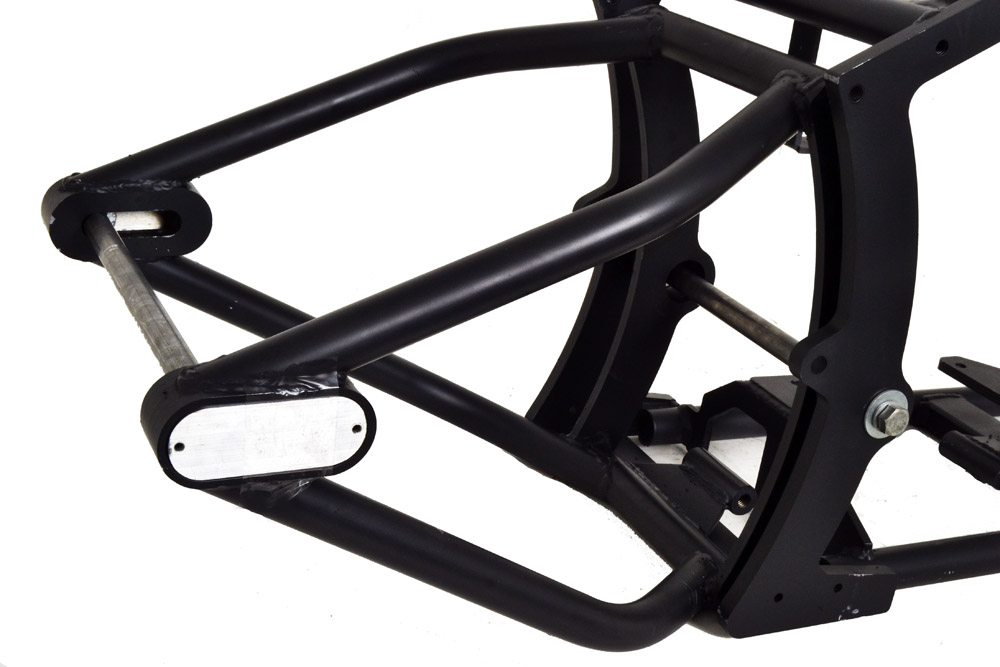

FAT TIRE 200mm SOFTAIL STYLE BOBBER FRAME

Special Features include:

35 Degree Rake.
3" Stretch on back bone
0" Down tube stretch

Frame comes with rear axle,  swingarm, Pivot arm, Pivot arm Bearings, Oil Tank Mounts, Axel Covers, and Manufacturers Paperwork.

Accepts Harley-Davidson Evolution motor 1986-99 and any Evo-style engine up to 135": RevTech, S+S, Ultima, Merch, Patrick.

Notice! For safety reasons we ship Paperwork separately from the frame.
The purchaser of the frame should email us with the VIN # found on the frame
and his mailing address. We will ship the Paperwork immediately upon this conformation.

Custom motorcycle built by Demon's Cycle on similar frame

250 Custom Pro-Street Frame

Made in USA

200 Custom Pro-Street Frame

Frame is made to accept Harley-Davidson Evolution motor or any custom Evo-style motors.

Accepts Wide 200-series tire
Full TIG welding
1"- diameter rear axle
38° degree rake
6" Out Stretch
2" Up Stretch
1-3/4" and 1-3/8" tubes
Left Side Drive
Adjustable transmission plate.
Bilet aluminum axle covers.
Comes with rear axle.

Made in USA

250 Custom Pro-Street Frame

Frame is made to accept Harley-Davidson Evolution motor or any custom Evo-style motors.

Accepts Wide 250-series tire
Full TIG welding
1"- diameter rear axle
38° degree rake
6" Out Stretch
2" Up Stretch
1-3/4" and 1-3/8" tubes
Left Side Drive
Adjustable transmission plate.
Billet aluminum axle covers.
Comes with rear axle.

Made in USA

Rigid Wide Drive Frame

This is a nice clean old school chopper rigid frame that handles perfect and is not too too big.
Brand new first quality Rigid Frame.
This USA made frame has a 34 degrees rake,
4"  downtube stretch,
1"  backbone stretch and accepts up to 210mm tire with a belt. This frame make a great bike.
Auction is for Frame with MSO
Accepts all Harley-Davidson 1985 - 99 EVO Engines + Transmissions
80" to 135"

Dimensions:

Rake of 34 degrees.
4" Stretch downtubes.
Tank mounts.
1026 DOM (Drawn Over Mandrel) steel tubing.
Legs are 1.25" O.D. with .125" thick wall.
Backbone is 1.500" O.D. with .187" thick wall.
Seat post is 1.500" O.D. with .187" thick wall.

Product ID = 3322

2 BILLET CHROME FRAME FORK CUPS

These 2 billet chrome frame fork cups will fit most
Big Twins and Custom frames
from 1960 to Present.

for 1" stem

These nice triple plated fork cups retail for $58.99 US
and we sell for a fraction of the cost.
A "must have" for any Custom Bike builder.
