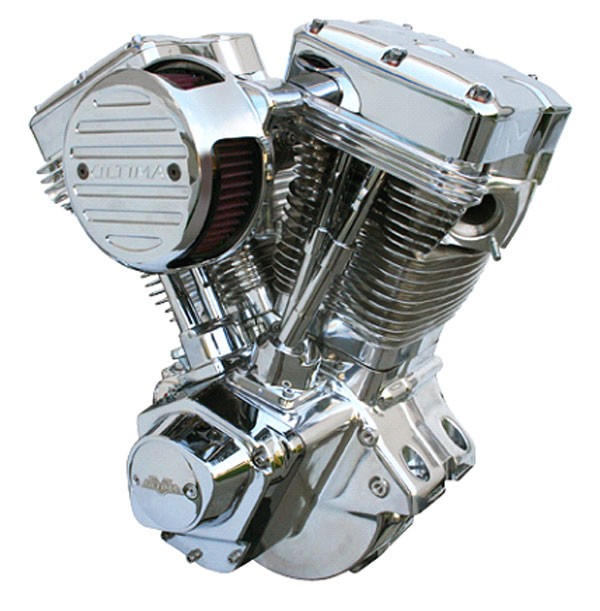

Ultima El Bruto 120ci Evolution-Style Engine for Harley-Davidson Polished Finish

SKU: ElBruto 120 Polished
ID #: 387

Double click on above image to view full picture

More Views

Email to a Friend

Be the first to review this product

Availability: In stock

$5,099.99

Our Price : $5,099.99

Qty:

-OR-

Description

El Bruto Series 120ci 4.25" Bore Engine
Polished

130 HP USA Made

Notice! THIS ENGINE IS IN STOCK AND WILL SHIP SAME DAY YOUR PAYMENT ARRIVES

NOT LIKE OTHERS THAT ORDER AFTER THEY HAVE YOUR MONEY

COMPLETE WITH CARB IGNITION MSO AND WARRANTY!!

FACTORY ASSEMBLED!*

*Notice: This engine is FACTORY ASSEMBLED. Some of our competitors, especially on eBay, offer engines that are self assembled from spare parts at a lower price. Do not take a risk on a non-factory assembled engine!

El Bruto Series 120ci 4.25" bore Engine

Ultima is now offering the new " El Bruto" series engines which are designed to provide our customers with a USA built High Performance engine that was priced to be the best value of any engines now on the market. Ultima's commitment engineering excellence and competitive pricing brought El Bruto to life with a completely new design set of castings emphasizing performance, reliability, and value.

All of the castings in these Engines are poured in US foundries and are based on all new CAD designs cast from C355 Aluminum a common US Military alloy known for its stability over multiple heat cycles. The engine components are machined on state of the art CNC equipment for guaranteed dimensional accuracy and repeatability. All of our engines are dynamically balanced using proprietary methods to provide the smoothest running engines on the market and now with our new high flow cylinder heads these engines now can boast the most powerful engines on the market as well!!

We think that you will agree these engines are the best value anywhere.

Product Specifications/ Highlights 120 Ci

Bore: 4.25
Stroke: 4.25
Piston: Forged
Compression: 9.8:1
Rated Power: 130RW Horsepower
135 LB FT Torque
Camshaft: .640 lift
Pushrods: Crane
Valve Spring: Ultima
Chrome Nose Cone / Rocker Boxes
Billet Oil Pump
Chrome Tappet Blocks
Ignition included on assembled engines.

El Bruto Series
Ultima 4.25 Bore 120CI Engine
Ultima is now offering the new El Bruto Series Engines which are designed to provide our customers with a U.S.A. built High Performance engine that is priced to be the best value of any engines now on the market. Midwests commitment to engineering excellence and competitive pricing brought El Bruto to life with a completely new designed set of castings emphasizing performance, reliability, and value.
All of the castings in these engines are poured in U.S. foundries and are based on all-new CAD designs cast from C355 aluminum, a common U.S. military alloy known for its stability over multiple heat cycles. The engine components are machined on state of the art CNC equipment for guaranteed dimensional accuracy and repeatability. All of our engines are dynamically balanced using proprietary methods to provide the smoothest running engines on the market and now with our new high flow cylinder heads these engines now can boast the most powerful engines on the market as well!! We think that you will agree these engines are the best value anywhere. 12 Month - 12000 mile warranty. d.o.p.

Case
Made In U.S.A. Cast-in steel inserts guaranteed not to move. Large bore breather for increased crank case vacuum and less blow by. 1/2 Alignment dowels for true line bore. Counterbored stainless allen head case bolts. Close machining tolerances. Made from prime C355-T6 aluminum that is superior in strength to A356. Styling and cosmetic machining for a custom look.

Crankshaft
Our New state of the art designed crankshaft incorporates a massive 1.670 diameter pin that is pressed into the one piece, heat treated, 4140 steel flywheel half making these crankshafts some of the strongest available on the market today. These crankshafts feature all new 7.7 long H-Beam rods with .927 diameter wrist pins to handle all the power you can throw at them. These are also balanced using our exclusive methods making these some of the smoothest engines in the industry.

Cylinder
C355-T6 Casting. Cast in liners will not move. All fins are machined for an excellent cosmetic appearance.

Cylinder Head
C355-T6 Casting. All fins are machined for excellent cosmetic appearance. Twin Cam Styling means 30 % more fin than most Evolution style heads for cooler running. Compression release valves. 2.100 stainless intake valves, 1.700 stainless exhaust valves. Manganese Bronze guides. High silicon wire valve spring with chromoly retainer.

Carburetor

Ultima is proud to introduce our performance carburetors, directly interchangeable with S&S Super G Carburetors. Ultima carburetors will accept S&S jets and S&S bolt pattern air filter assemblies.

Patented design improvements - a relocated accelerator pump nozzle for increased throttle response and THUNDER JETS are a bolt on! Simply remove the plugs and screw in the Thunder Jet. No expensive machining required!

Complete 120 CI Engine-- Polished Finish

COMPLETE WITH CARB IGNITION, MSO AND WARRANTY!!

FACTORY ASSEMBLED!!
